10 WATT CONSTANT POWER
EMERGENCY LED DRIVERS

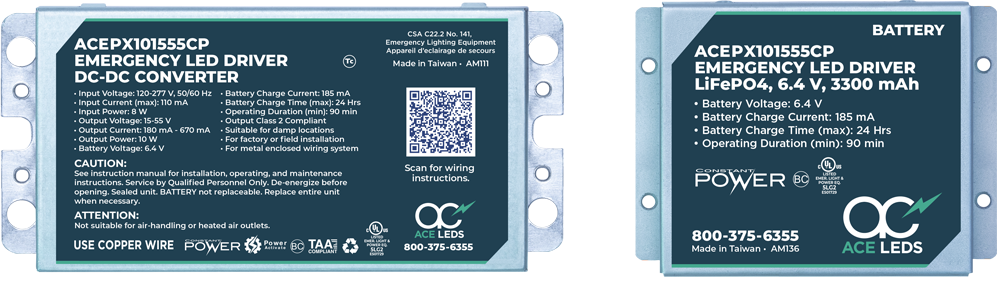

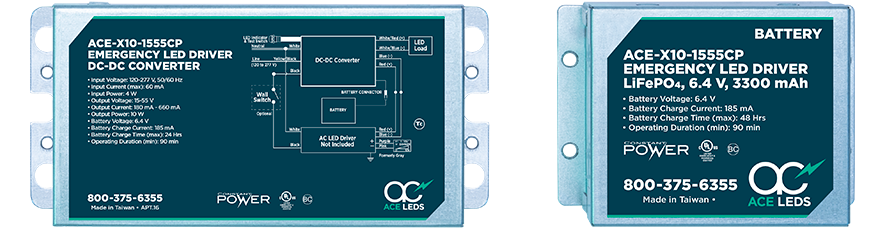

ACE-X10-1555CP


ACE-X10-1555CP

10 Watt Constant Power
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

Converter: 5.23"L x 2.48"W x 1.18"H x 4.84"M

Battery: 3.35"L x 2.44"W x 1.38"H


Spec Sheet
Instruction Sheet
Driver CAD
Battery CAD
PLACE AN ORDER

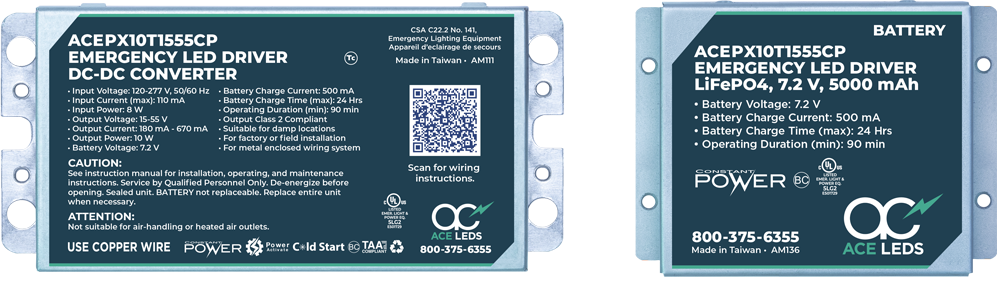

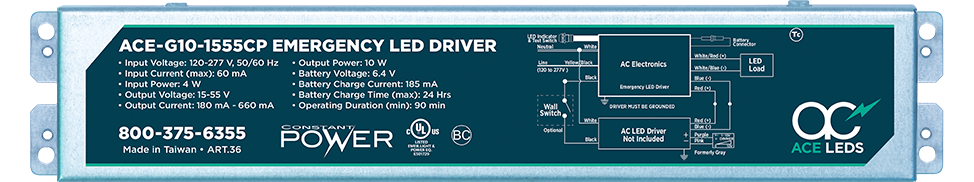

ACE-X10T-1555CP


ACE-G10-1555CP


10 Watt Constant Power
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

180 mA - 670 mA

Output Voltage:

15 - 55 Volts

Dimensions:

Converter: 5.23"L x 2.48"W x 1.18"H x 4.84"M

Battery: 3.35"L x 2.44"W x 1.38"H


Spec Sheet
Instruction Sheet
DRIVER CAD
BATTERY CAD
PLACE AN ORDER

ACE-G10I-1555CP


ACE-G10I-1555CP

10 Watt Constant Power
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.2"H


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER

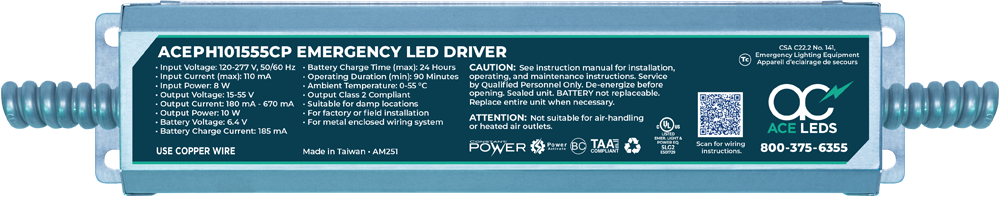

ACE-H10I1555CP


ACE-H10I1555CP


10 Watt Constant Power
Isolated Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

180 mA - 670 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5”L x 1.7”W x 1.16”H x 8.9”M


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER

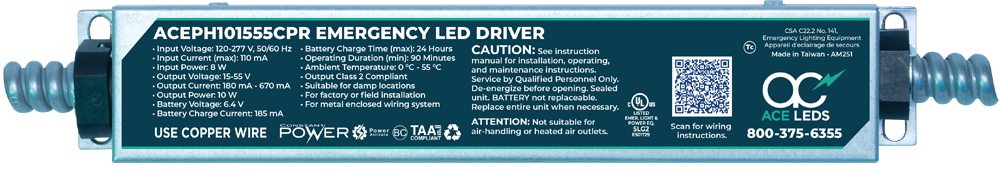

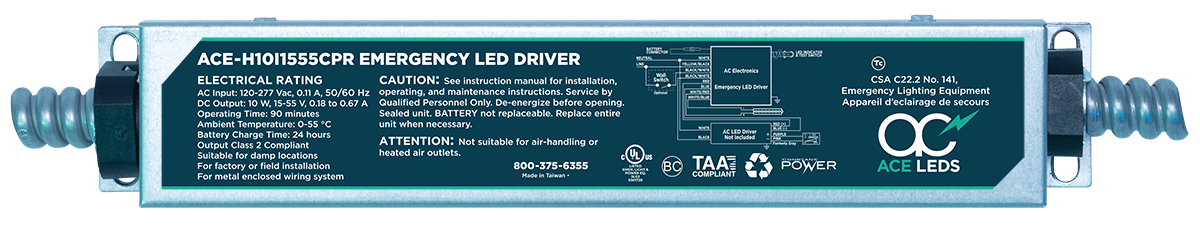

ACE-H10I1555CPR

ACE-H10I1555CPR

10 Watt Constant Power
Isolated Emergency LED Driver

Input Voltage:

120 - 277 Volts

Output Current:

180 mA - 670 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5”L x 1.7”W x 1.16”H x 8.9”M


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER

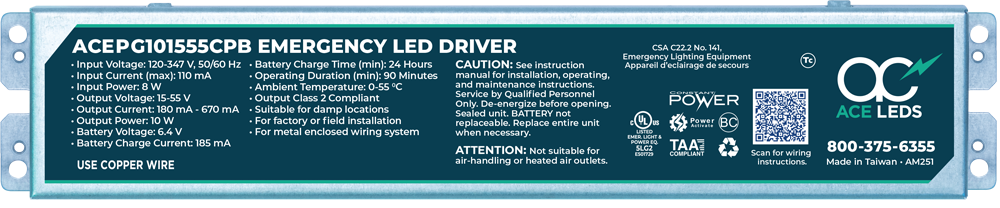

ACE-G10-1555CPB


ACE-G10-1555CPB


10 Watt Constant Power
Emergency LED Driver

Input Voltage:

120 - 347 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.14"H


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER

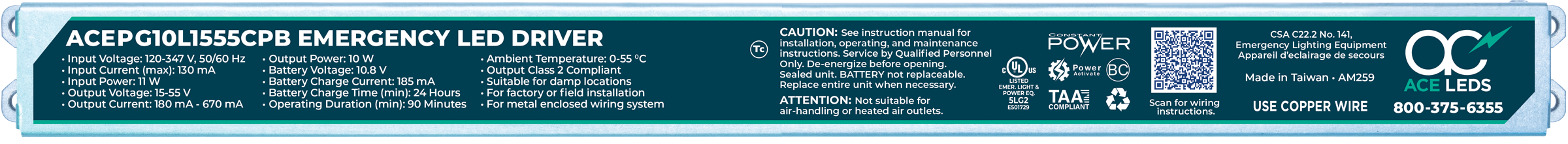

ACE-G10L1555CPB

ACE-G10L1555CPB

10 Watt Constant Power
Emergency LED Driver

Input Voltage:

120 - 347 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.53"L x 1.21"W x 1.1"H


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER

ACE-G10IL1555CP


ACE-G10IL1555CP


10 Watt Constant Power
Isolated Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

180 mA - 670 mA

Output Voltage:

15 - 55 Volts

Dimensions:

14.1"L x 1.18"W x 1.0"H x 13.7"M


Spec Sheet
Instruction Sheet
PLACE AN ORDER

ACE-H10I1555CPO

ACE-H10I1555CPO

10 Watt Constant Power
Emergency LED Driver

Input Voltage:

120 - 347 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.2"H


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER

ACE-H10-1555CPB


ACE-H10-1555CPB


10 Watt Constant Power
Emergency LED Driver

Input Voltage:
120 - 347 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.14"H x 8.9"M


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER

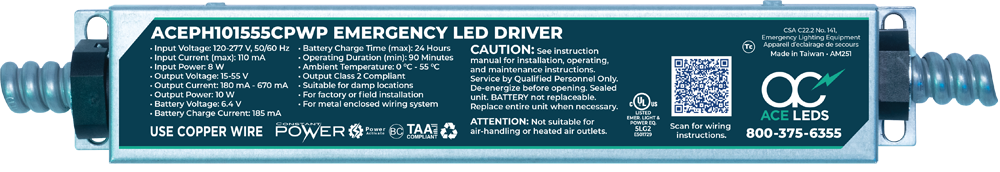

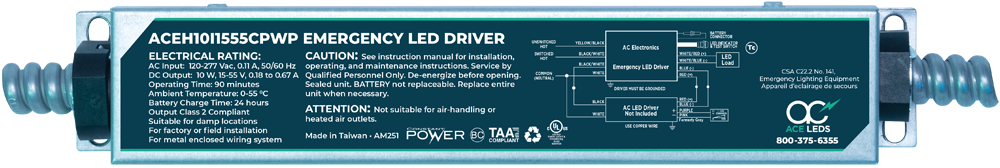

ACE-H10I1555CPWP

ACE-H10I1555CPWP

10 Watt Constant Power
Isolated Emergency LED Driver
with Conduit and Plate

Input Voltage:

120 - 277 Volts

Output Current:

180 mA - 670 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.14"H x 8.9"M


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER
