COLD START EMERGENCY
LED DRIVERS


The "Cold Start" feature of this Emergency LED driver enables it to function effectively in frigid conditions, with starting temperatures as low as -20°C, making it the top choice for outdoor and extreme cold environments.

In extremely cold settings, it's not uncommon for LED lights to require an initial voltage surge to initiate operation. Once they're on, the LEDs are no longer vulnerable to the cold because the current passing through them generates enough heat. However, many LED lights struggle to withstand this initial voltage surge.

ACE LEDS' Cold Start Constant Power Emergency LED Drivers address this issue by incorporating Lithium (LiFePO4) batteries alongside a built-in heating element. This combination ensures that the LEDs can achieve and maintain optimal performance even in low-temperature conditions.



ACE-X10T-1555CP


ACE-X10T-1555CP


10 Watt Cold Start Constant Power
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

5.23"L x 2.48"W x 1.18"H x 4.84"M


Spec Sheet
Instruction Sheet
Driver CAD
Battery CAD
PLACE AN ORDER

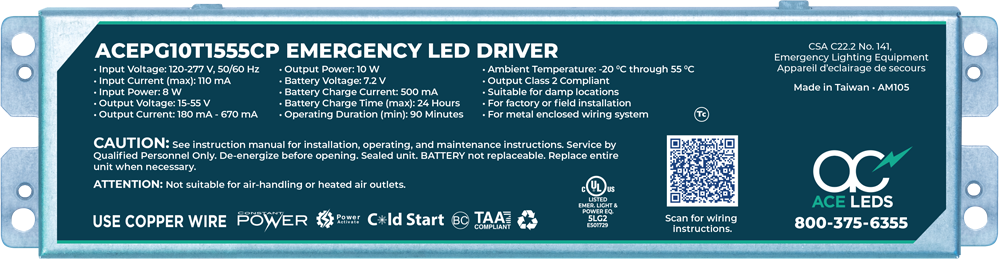

ACE-G10T-1555CP


ACE-G10T-1555CP

10 Watt Cold Start Constant Power
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5" L x 2.4" W x 1.46" H


Spec Sheet
Instruction Sheet
CAD
PLACE AN ORDER


ACE-X16TI1555CP


ACE-X16T-1555CP


16 Watt Cold Start Constant Power Isolated
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

290 mA - 1067 mA

Output Voltage:

15 - 55 Volts
Converter Dimensions:
Battery Dimensions:
5.23”L x 2.48”W x 1.18H x 4.84”M
4.01"L x 4.05"W x 1.26"H x 3.6"M

Spec Sheet
Instruction Sheet
Driver CAD
Battery CAD
PLACE AN ORDER
