The Rail - Constant Power Linear Emergency LED Drivers

THE RAIL™ FAMILY OF LINEAR EMERGENCY LED DRIVERS

In response to the industry's demand for slimmer drivers, ACE LEDS introduced The Rail™ family of Emergency LED drivers. This groundbreaking design represents our slimmest offering to date and has been meticulously crafted to seamlessly integrate into fixtures where other emergency drivers simply won't fit.

However our commitment to innovation didn't end there. We've taken The Rail™ Linear Emergency LED Driver to the next level with the introduction of the Mini-Rail™. This compact variant is 4.6 inches shorter in length and 0.17 inches smaller in height compared to our already impressively sleek existing models.

Available in 6.5 Watts, The Mini-Rail™ can fit inside any lighting fixture you can dream up.

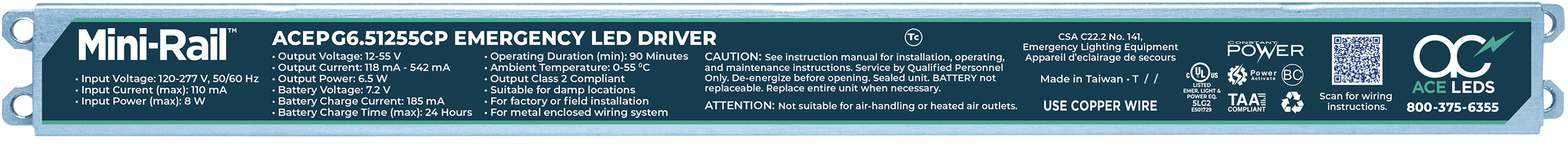

ACEPG6.51255CP

The Mini-Rail™ 6.5 Watt
Constant Power Linear
Emergency LED Driver
with Power Activate

Input Voltage:

120 - 277 Volts

Output Current:

118 mA - 542 mA

Output Voltage:

12 - 55 Volts

Dimensions:

12.01"L x 1.0"W x 0.83"H

Spec Sheet

Instruction Sheet

ACE-G6.5I1255CP

The Mini-Rail™ 6.5 Watt
Constant Power Linear
Emergency LED Driver

Input Voltage:

120 - 277 Volts

Output Current:

118 mA - 542 mA

Output Voltage:

12 - 55 Volts

Dimensions:

12.01"L x 1.0"W x 0.83"H

Spec Sheet

Instruction Sheet

ACE-H6.5I1255CP

The Mini-Rail™ 6.5 Watt
Constant Power Linear
Emergency LED Driver
with Conduit

Input Voltage:

120 - 277 Volts

Output Current:

118 mA - 542 mA

Output Voltage:

12 - 55 Volts

Dimensions:

14.4”L x 1.18”W x 1.0H

Spec Sheet

Instruction Sheet

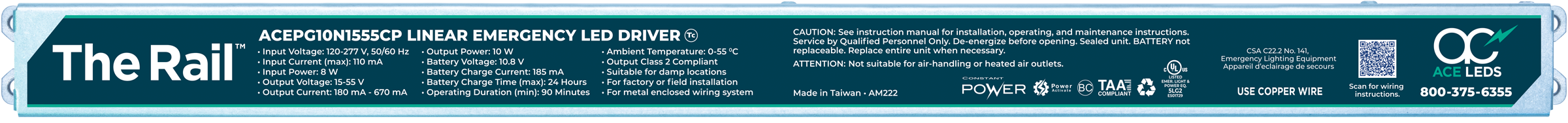

ACEPG10N1555CP

The Rail™ 10 Watt
Constant Power
Linear Emergency
LED Driver
with Power Activate

Input Voltage:

120 - 347 Volts

Output Current:

180 mA - 670 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.6”L x 1.18”W x 1.0H

Spec Sheet

Instruction Sheet

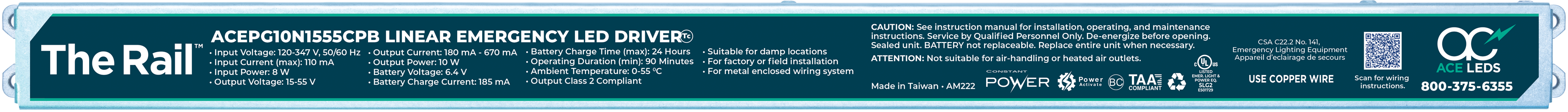

ACEPG10N1555CPB

The Rail™ 10 Watt
Constant Power Linear
Emergency LED Driver
with Power Activate

Input Voltage:

120 - 347 Volts

Output Current:

180 mA - 670 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.6”L x 1.18”W x 1.0H

Spec Sheet

Instruction Sheet

Wiring Diagram

ACEG10LNI1555CP

The Rail™ 10 Watt
Constant Power Isolated
Linear Emergency LED Driver

Input Voltage:

120 - 277 Volts

Output Current:

180 mA - 660 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.6”L x 1.18”W x 1.0H

Spec Sheet

Instruction Sheet

ACEPG14N1555CP

The Rail™ 14 Watt
Constant Power Linear
Emergency LED Driver
with Power Activate

Input Voltage:

120 - 277 Volts

Output Current:

250 mA - 935 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.6”L x 1.18”W x 1.0H

Spec Sheet

Instruction Sheet

ACEG14NI1555CPP

The Rail™ 14 Watt
Constant Power Isolated
Emergency LED Driver

Input Voltage:

120 - 277 Volts

Output Current:

250 mA - 935 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.6"L x 1.18"W x 1.0"H x 16.3"M

Spec Sheet

Instruction Sheet

ACE-G14LN1555CP

The Rail™ 14 Watt
Constant Power Linear
Emergency LED Driver

Input Voltage:

120 - 277 Volts

Output Current:

254 mA - 933 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.6”L x 1.18”W x 1.0H

Spec Sheet

Instruction Sheet

The Rail™ LINEAR EMERGENCY
LED DRIVER ACCESSORIES

Quick Connect Harness Models

Equipped with IDEAL quick connect push-in wire connectors.

Wire dimensions with Quick Harness Length = 8.5"

Model Number

Description and Order Information

Q = Quick Connect

You can order this option by just asking for the model number and adding (Q)

Example

ACE-G14-1555CPQ

Wire

Wire Guage

SOLID

12 - 18 AWG

STRANDED

12 - 18 AWG (≤19 STRAND)

TIN BONDED

12 AWG (≤19 STRAND)
14 AWG (≤19 STRAND)
16 AWG (≤26 STRAND)
18 AWG (≤16 STRAND)

The IDEAL quick connect push-in wire connectors are the industry standard for luminaire connectors providing high quality quick connections, saving time, increasing productivity, and reduces errors.
