OPTIONS & ACCESSORIES
FOR EMERGENCY LED DRIVERS
ACE LEDS provides various innovative accessories for our Emergency LED Drivers. Your options include R-Mount Conduit and Cable Models, Wall Plate accessories, White Test switches and Quick Connect Harness Models. Tell us what you need and we’ll bring you the power.
R-MOUNT CONDUIT MODELS
LED Indicator and Test Switch mounted in an FMC 90 degree terminating connector with flex conduit. Includes 90-degree elbow connector for reflector mounting of the test switch.
Model Number
Description and Order Information
R = R-Mount
With Conduit
With Conduit
You can order this option by just asking for the model number and adding (R)
Example
ACE-H10-1555CPR
R-MOUNT CABLE OPTION
LED Indicator and Test Switch mounted in an FMC 90 degree terminating connector with cable and miniature cable connector.
Model Number
Description and Order Information
C = R-Mount
With Conduit
You can order this option by just asking for the model number and adding (C)
Example
ACE-H10-1555CPR
12 mm Test Switch
Also available in white.
Model #10220663

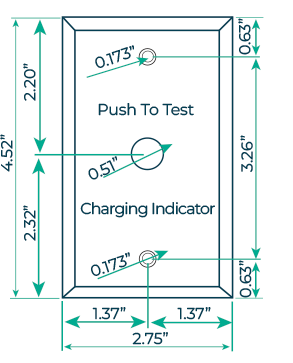

Wall Plate Accessories
AEMC2WPL1
Plastic
AEMC2WMT2
Metal
CEILING APPLICATION
Quick Connect Harness Models
Equipped with IDEAL quick connect push-in wire connectors.
Wire dimensions with Quick Harness Length = 8.5"
Model Number
Description and Order Information
Q = Quick Connect
You can order this option by just asking for the model number and adding (Q)
Example
ACE-G14-1555CPQ
Wire
Wire Guage
SOLID
12 - 18 AWG
STRANDED
12 - 18 AWG (≤19 STRAND)
TIN BONDED
12 AWG (≤19 STRAND)
14 AWG (≤19 STRAND)
16 AWG (≤26 STRAND)
18 AWG (≤16 STRAND)
14 AWG (≤19 STRAND)
16 AWG (≤26 STRAND)
18 AWG (≤16 STRAND)
The IDEAL quick connect push-in wire connectors are the industry standard for luminaire connectors providing high quality quick connections, saving time, increasing productivity, and reduces errors.
RTS1 Remote Test Switch
This remote test switch allows for remote mounting
of the test switch and indicator light.
Includes: Junction box, cover plate and flexible
3 ft. conduit wire.
Model #: RTS1
