10 WATT CONSTANT CURRENT EMERGENCY LED DRIVERS



ACE-G10-55-190C


ACE-G10-55-190C


10 Watt Constant Current
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

400 mA - 1400 mA

Output Voltage:

15 - 55 Volts

Dimensions:

17.71"L x 1.69"W x 1.14"H x 17.24"M


Spec Sheet
Instruction Sheet
CAD

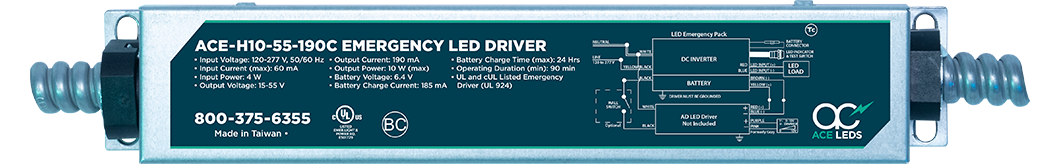

ACE-H10-55-190C


ACE-H10-55-190C

10 Watt Constant Current
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

190 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.2"H x 8.9"H


Spec Sheet
Instruction Sheet
CAD

ACE-G10L55-181C


ACE-G10L55-181C


10 Watt Constant Current
Emergency LED Driver

Input Voltage:

120 - 347 Volts

Output Current:

181 mA

Output Voltage:

15 - 55 Volts

Dimensions:

16.53"L x 1.20"W x 1.1"H x 16.25"M


Spec Sheet
Instruction Sheet
CAD

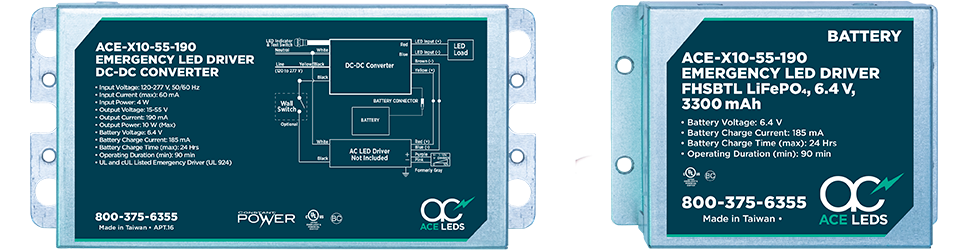

ACE-X10-55-190


ACE-X10-55-190

10 Watt Constant Current
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

190 mA

Output Voltage:

15 - 55 Volts

Dimensions:

5.23"L x 2.48"W x 1.18"H x 4.45"M


Spec Sheet
Instruction Sheet
CAD

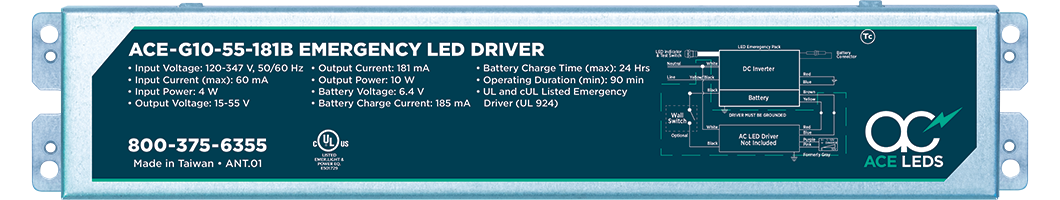

ACE-G10-55-181B


ACE-G10-55-181B


10 Watt Constant Current
Emergency LED Driver

Input Voltage:
120 - 347 Volts

Output Current:

181 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.14"H x 8.9"M


Spec Sheet
Instruction Sheet
CAD

ACE-H10-55-181B


ACE-H10-55-181B

10 Watt Constant Current
Emergency LED Driver

Input Voltage:

120 - 347 Volts

Output Current:

181 mA

Output Voltage:

15 - 55 Volts

Dimensions:

9.5"L x 1.7"W x 1.14"H x 8.9"M


Spec Sheet
Instruction Sheet
CAD

ACE-F50-55-1.4C


ACE-G10L55-181C


10 Watt Constant Current
Emergency LED Driver

Input Voltage:

120 - 277 Volts

Output Current:

400mA-1400mA

Output Voltage:

15 - 55 Volts

Dimensions:

17"L x 1.69"W x 1.14"H x 17.24"M


Spec Sheet
