Welcome to The Innovation Lab

The Innovation Lab is ACE LEDS' testing ground for building new industry solutions to the toughest challenges our customers can imagine. Here, we listen for opportunities and invent solutions. We stretch innovation further, disrupt the industry, and revolutionize the next generation of lighting opportunities.

We bring the innovation. We bring the power.



Self-Testing Emergency LED driver

Reliability Meets Brilliance: ACE LEDS’ Innovation Lab Unveils Self-Testing Emergency LED Drivers with Power Activate.

In a groundbreaking move at the intersection of reliability and brilliance, ACE LEDS' Innovation Lab proudly announces the launch of its latest innovation: Self-Testing Emergency LED Drivers with Power Activate. This cutting-edge technology is set to redefine emergency lighting solutions, offering unmatched performance and convenience for a variety of applications.

HOW IT EMPOWERS YOU
  • All units automatically test every 30 days for 30 minutes and once per year for 90 minutes.

  • Includes Power Activate feature that puts battery into sleep mode until connected at the job site. No need to unplug.

  • Sleek low profile linear 10 Watt and 14 Watt form factors easily fit into linear fixtures.

  • Higher Wattage: up to 30 Watts with Class 1 option for warehouse and high ceiling applications.

  • Saves facility operational and maintenance costs while improving reliability.

For questions or to place an order contact us at [email protected] or 800-375-6355 or your local WPG Americas Sales representative at [email protected] or 888-WPG8881




Check out product specifications for the
Self-Testing Emergency LED Driver with Power Active.

ACEG10LSD1555CP

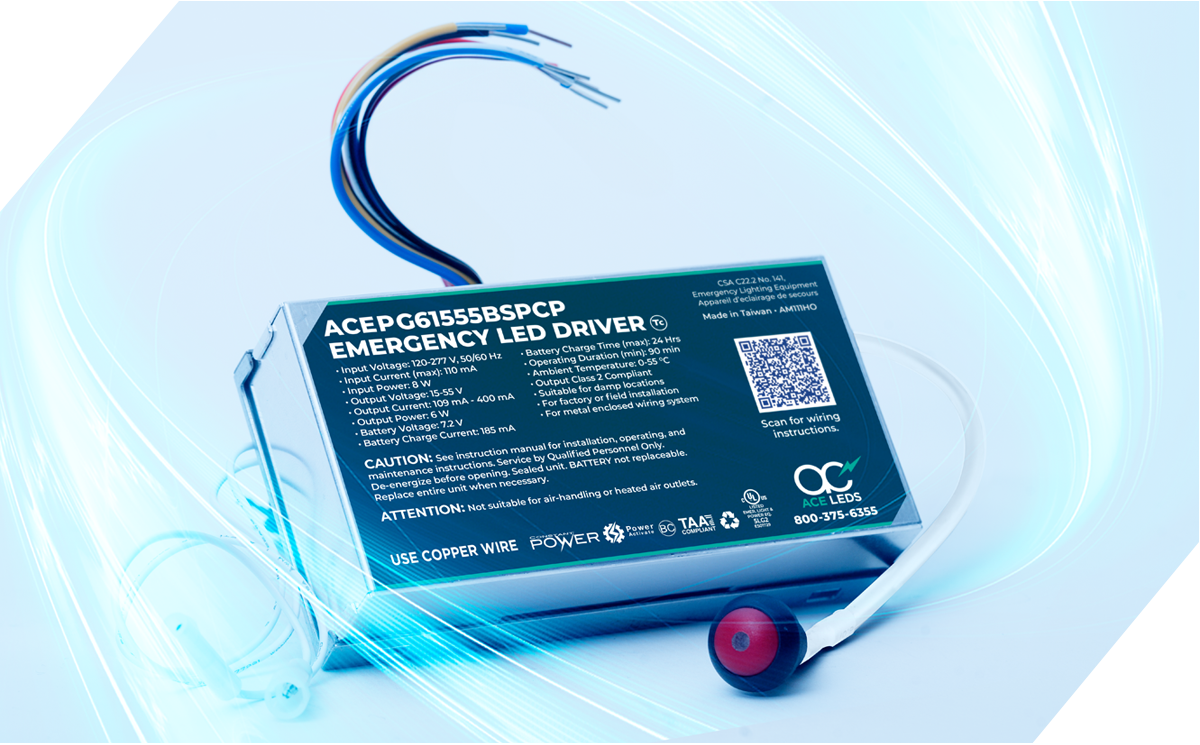

Presenting Tailored Innovation: The 6 Watt Bottom Mount Emergency LED Driver for Downlight & Recessed Lighting Applications.

ACE LEDS, proudly unveils its latest creation – the 6 Watt Bottom Mount Emergency LED Driver, specifically designed for downlight & recessed lighting applications. This innovative driver is full of features that make it the only choice for your emergency LED lighting needs.

HOW IT EMPOWERS YOU

Cost-Effective Brilliance: The 6 Watt Bottom Mount Emergency LED Driver is a cost-effective option that prioritizes both performance and compliance without compromising your budget.

Reliability with Isolated Relays: Equipped with isolated relays, the driver has a robust defense mechanism against inrush spikes.

Effortless Installation with Seamless Junction Box Integration: Designed for bottom mounting, this small and lightweight form factor seamlessly integrates onto the junction box without the need for additional conduit requirements and mounting brackets.

Included Test Switch with Compact Illuminated Indicator: The illuminated indicator allows for quick and efficient checks of the emergency system’s status.

The 6 Watt Bottom Mount Emergency LED Driver has two additional test switch accessories available:

The Right Angle Test Switch with Conduit features a convenient right-angle design for easy access during testing.

The 12mm Chrome Test Switch polished chrome finish and compact design contribute to an aesthetically pleasing solution without compromising on durability.

For questions or to place an order contact us at [email protected] or 800-375-6355 or your local WPG Americas Sales representative at [email protected] or 888-WPG8881



Check out product specifications for our
6 Watt Bottom Mount Emergency LED Driver.

ACE-G6I-1555BCP

Mini-Rail™

Introducing the latest evolution of The Rail™ family of linear Emergency LED drivers – The Mini-Rail™

It’s the smallest constant power linear Emergency LED driver on the market, at just 0.83” high and 1" wide. But don’t let the smaller size fool you, this isolated relay driver delivers a wide output range of 12-55 Vf, the highest power density available for its size, allowing for unlimited design applications.

HOW IT EMPOWERS YOU
  • Isolated Relay design provides a delay of the AC power to the normal LED driver to protect from high voltage or high current transients that can occur during transition from emergency-mode to normal mode.

  • Wide output voltage range from 12-55 Vf allows for unlimited design applications.

  • Discrete components and design allow for increased power in the smallest case size available.

  • Constant Power allows for over 90 minutes of steady regulated power with no drop off.

  • Highly efficient LiFePO4 battery with 7 to 10 years of life expectancy.

For questions or to place an order contact us at [email protected] or 800-375-6355 or your local WPG Americas Sales representative at [email protected] or 888-WPG8881




Check out product specifications for
the Mini-Rail™ Linear Emergency LED Driver.

ACE-G6.5I1255CP

The Pencil Programmable Dimming LED Driver

The Pencil™ Programmable LED Driver - A Design Engineer's Dream.

Measuring in at just 0.75 inches wide and 0.75 inches high The Pencil™ Programmable LED Driver is truly LED innovation. It has the shortest height and narrowest form factor on the market. Designed small for architectural lighting applications, this versatile driver is programmable, with Deep-Dimming and 3X wider voltage range than the competition.

As architectural lighting trends continue to change, becoming ever more sophisticated, ACE LEDS recognized the need for a small, smart, powerful form factor. So, we developed this incredibly small but incredibly versatile driver that actually helps design engineers do their job better by allowing them to create innovation that couldn’t have existed before.

Because the size of The Pencil™ Programmable LED Driver is so short and narrow, and the voltage range is so large, Original Equipment Manufacturers (OEMs) can lower their overall inventory and save up to 15% on manufacturing costs.

Key Features of the 30 W, 25 W and 13W models include:

  • 0.75 inches wide x 0.75 inches high
  • Up to 3X wider voltage range on 30 W models
  • The industry’s most popular dimming option: 0-10 V
  • Deep Dimming technology (100% down to 0.5% to off)
  • UL Class P
  • Costs up to 15% less than the competition.
  • Designed small for architectural lighting applications

For questions or to place an order contact us at [email protected] or 800-375-6355 or your local WPG Americas Sales representative at [email protected] or 888-WPG8881

Evaluation samples are available for immediate shipment for qualified customers. Request a sample today.


Check out product specifications
for our Pencil™ drivers here.



Cold Start

Cold Start Constant Power Emergency LED Drivers — The Power You Need to Beat Back the Cold.

The “Cold Start” function allows for -20°C starting temperatures, making it the best choice for outdoor and extreme cold environments.

In very cold environments, it’s not uncommon for operating LEDs to require an initial surge of voltage to turn on. Once the lights are on, cold temperatures no longer threaten the LEDs, as they are warmed up by the current flowing through them as they operate. However, many LEDs cannot tolerate the initial surge.

ACE LEDS’ Cold Start Constant Power Emergency LED Drivers utilize Lithium (LiFePO4) batteries as well as a heating element to achieve and maintain optimal low-temperature operation. Think of them working like an electric blanket, where the heating element surrounds the battery and keeps it warm and ready to start when the power goes off.

  • Avaliable in 10 Watt or 16 Watt, single piece or 2 piece modular form factors
  • Environmentally safe, running on advanced lithium power
  • Constant Power output maintains consistent illumination during 90 minute duration
  • Ideal for freezers, cobra head fixtures, outdoor fixtures, canopies and wallpacks.

  • Extremely competitive price points, without tariffs

  • 100% protected by our 5-year USA-backed warranty


Check out product specifications for our Cold Start Constant Power Emergency LED Drivers here.




Emergency Lighting Dimming Control Relay — Versatility and reliability when you need the power back and you need it now.

During a power failure, the Dimming Control Relay overrides the dimming function on the LED driver which forces it to Full Light Output levels.

Our Emergency Lighting Dimming Control Relay is a UL924 listed emergency lighting control device intended for use with 0-10 Vdc or DALI Dimming Controls.

HOW IT EMPOWERS YOU
  • Used with LED luminaires that do not use AC power switched lines.

  • Can be used with ALCRs that switch or control power.

  • Small size and light weight: Enables mounting inside small fixtures (The ACE-G.5-ELDCR has the smallest footprint and smallest of any ELCD of this type in the industry.)

  • Cost Effective Pricing You save 15% or more on domestic brands.

  • USA Backed Warranty

For questions or to place an order contact us at [email protected] or 800-375-6355 or your local WPG Americas Sales representative at [email protected] or 888-WPG8881



Check out product specifications for
our Emergency Lighting Control Relay.

ACE-G.5-ELDCR
Emergency Lighting
Dimming Control Relay

PoE  Automatic Load Control Relay

Emergency Lighting PoE Automatic Load Control Relay

Our Automatic Load Control Relay is an emergency lighting control device which allows designated luminaires to be powered in emergency-mode by an emergency source of power, such as a remote generator or inverter, upon the loss of normal power.

HOW IT EMPOWERS YOU

  • Allows full illumination of an LED fixture powered from the emergency source of power in emergency-mode supplying up to 5 amps continuous for the duration of the emergency source of power.

  • Operating Temperature Range Extended (-20 to 65 °C) for use in temperature demanding environments

  • Increased Energy Savings Allows elimination of the need for “always on” fixtures.

  • Allows Local Lighting Control systems such as PoE to be fully operational, independent, and separate from the emergency lighting system.

  • Enables the emergency lighting powered from the AC emergency source of power to be independent and separate from the PoE lighting system, or other low voltage DC lighting system.

  • Eliminates the need for additional dimming relays or ALCRs.

  • Includes AC line surge protection up to 3 kV for robust and reliable operation.

For questions or to place an order contact us at [email protected] or 800-375-6355 or your local WPG Americas Sales representative at [email protected] or 888-WPG8881




Check out product specifications for
PoE Automatic Load Control Relay

ALCR-G5-POE


The Rail™ Linear Emergency LED Driver — Impossibly Sleek, Incredibly Narrow

Inspired by the industry’s need for a thinner driver, we created The Rail™, a long and narrow, constant power Emergency LED driver. This innovative form factor is our thinnest to date and is specially designed to fit inside fixtures other emergency drivers can’t. The unique aspect ratio makes The Rail™ ideal for linear fixtures and high bay lights.



Features of the 10 W and 14 W models include:
  • Up to 45% narrower and 19% shorter than major competitors
  • UL and cUL listed (UL924) & CEC Title 20 compliant
  • Built with Lithium (LiFePO4) batteries
  • Constant Power output maintains consistent illumination during 90 minute duration
  • Eliminates costly extra on-site wiring
  • Extremely competitive pricing & no tariffs

Check out product specifications
for our Rail™ Linear Emergency LED drivers here.
Emergency Lighting Power Supply

The New 10 W Constant Power Emergency Lighting Power Supply — The Answer for Type B TLED Tubes

Our latest achievement in advanced LED technology is the 10 W Constant Power Emergency Lighting Power Supply for Type B TLED Tubes. This specially designed, innovative power supply works with a broad range of applications powering tubes from 5 - 23 watts. It features a simplified two-wire installation and is UL and cUL listed (UL924).

HOW IT EMPOWERS YOU

  • Used with LED luminaires that do not use AC power switched lines.
  • Lamp Compatibility The power supply has been tested and is compatible with lamps from NINE different manufacturers.
  • Broad Wattage Versatility We've optimized it to power 5 - 23 W single-ended tubes.
  • Cost Effective Pricing You save 15% or more on domestic brands.
  • USA Backed Warranty

For questions or to place an order contact us at [email protected] or 800-375-6355 or your local WPG Americas Sales representative at [email protected] or 888-WPG8881


To find out even more about our new 10 W Constant Power Emergency Lighting Power Supply for Type B TLED Tubes check out the sell sheet or product specifications here.

ACE-G10B-180CP Sell Sheet
ACE-G10B-180CP Specifications



The Smallest Low Power Emergency Drivers Available
ACE LEDS has the smallest form factor for low power emergency drivers in the industry. Our low output power is suitable for low to mid power fixtures with a max power consumption of 40W. The CP8 model utilizes a smaller test switch with 8mm diameter (standard is 12mm).


Check out product specifications
for our Low Power drivers here.

All ACE LEDS products, whether custom-made or chosen from our inventory, are backed by our 5-year USA- backed warranty.
