HIGH VOLTAGE:
UL NON-CLASS 2


ACE LEDS is proud to offer a new line of Emergency LED Drivers, compatible with high-voltage (non-class 2) LED fixtures.

Our High Voltage UL Non-Class 2 Emergency LED Drivers conveniently use the same LED fixture for both standard and emergency operation. The drivers encompass a LiFePO4 battery, a highly efficient battery charger, sophisticated control circuitry, and high-efficiency power converter circuits, all within a single robust metal enclosure.

Moreover, these drivers improve efficacy, reduce internal heat to the lighting system, can be used in switched or unswitched fixture applications, and can work in any LED arrangement or module in emergency-mode with a voltage range of 30-130 Vdc, while operating at a current range of 77 mA to 333 mA.



ACE-G10I30130CP


ACE-G10I30130CP

10 Watt High Voltage
UL Non-Class 2
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

77 mA - 333 mA

Output Voltage:

30 - 130 Volts

Dimensions:

11.97"L x 1.7"W x 1.2"H x 11.38"M


Spec Sheet
Instruction Sheet
PLACE AN ORDER

ACE-G20I50255CP – Vo 50-255


ACE-G20I50255CP – Vo 50-255


20 Watt High Voltage UL Non-Class 2 Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

78 mA - 400 mA

Output Voltage:

50 - 255 Volts

Dimensions:

12.6”L x 2.24”W x 2.05”H x 12.0”M


Spec Sheet
Instruction Sheet
Place An Order

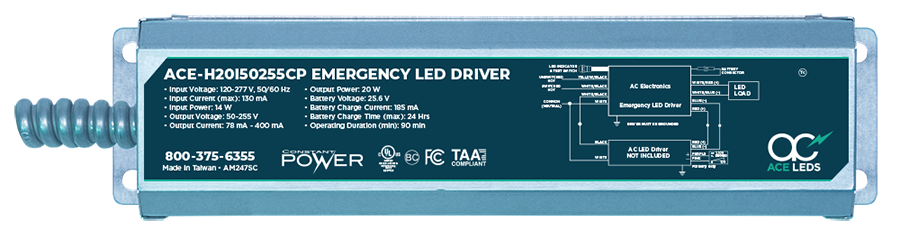

ACE-H20I50255CP


ACE-H20I50255CP

20 Watt High Voltage UL Non-Class 2
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

78 mA - 400 mA

Output Voltage:

50 - 255 Volts

Dimensions:

12.6”L x 2.24”W x 2.05”H x 12.0”M


Spec Sheet
PLACE AN ORDER

ACE-G30I50255CP


ACE-G30I50255CP


30 Watt High Voltage UL Non-Class 2 Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

118 mA - 600 mA

Output Voltage:

50 - 255 Volts

Dimensions:

12.6”L x 2.24”W x 2.05”H x 12.0”M


Spec Sheet
Instruction Sheet
Place An Order

ACE-H30I50255CP


ACE-H20I50255CP

30 Watt High Voltage UL Non-Class 2
Emergency LED Driver

Input Voltage:
120 - 277 Volts

Output Current:

118 mA - 600 mA

Output Voltage:

15 - 55 Volts

Dimensions:

12.6”L x 2.24”W x 2.05”H x 12.0”M


Spec Sheet
PLACE AN ORDER
